FeatBit

Feature Impact Monitoring

See health signals in their release context.

Checkout errors rise during a release. Explore the Release Health design that connects metric sources and guard conditions to webhook alerts, then brings trends and change context into the investigation.

Try FeatBit See the solution

A practical walkthrough with Checkout reliability

The story · Release Health · a design in progress

Checkout errors rise. The team needs the metric and release context together.

The Release Health design connects a metric’s source binding, guard conditions, and webhook alerts to an investigation with supporting trends and a change timeline. An isolated checkout example shows this flow while the capability is still being designed.

Design preview · Isolated checkout demo data

Inside FeatBit · 4 steps

Connect a release to its health signals and alerts.

Follow the Release Health design from a metric’s data source to guard rules, webhook alerts, and investigation with release context.

Design preview · Release Health is still in design. These preview screens use isolated checkout demo data. Automatic rule checks, alert delivery, and background synchronization are not active in the shown build.

  1. 01Step 01 / 04

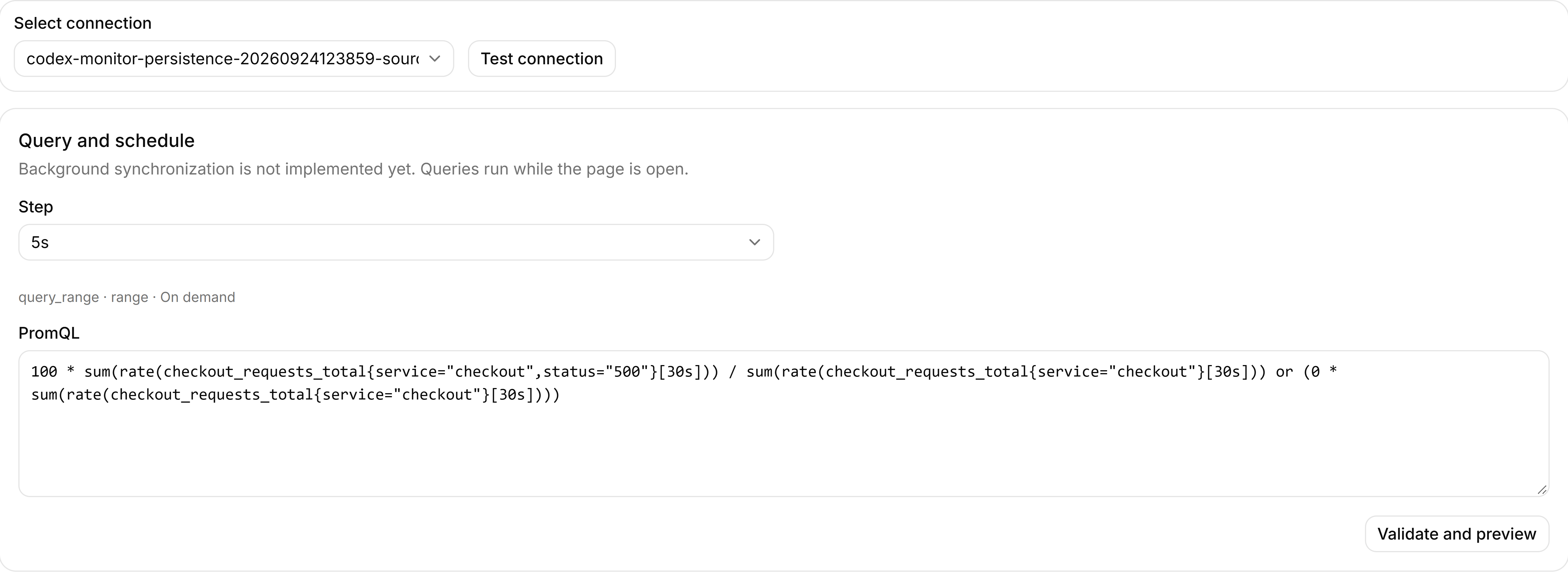

    Connect the metric to its environment’s data source.

    For Checkout error rate, define the result as a percentage and select the Prod source binding. The preview uses a Prometheus-compatible connection, a PromQL query, and a 5-second step. Its query runs while the page is open.

    Measurement
    Ratio · percent (0–100)
    Source
    Prometheus-compatible
    Query step
    5 seconds · on demand

    The metric has an explicit source, unit, and query context before it is attached to a release.

    Inside FeatBitDesign preview
    Swipe to inspect
    Design preview → Metric source binding and query

    Application telemetry

    A defined health metric

    Keep the source and result contract explicit

  2. 02Step 02 / 04

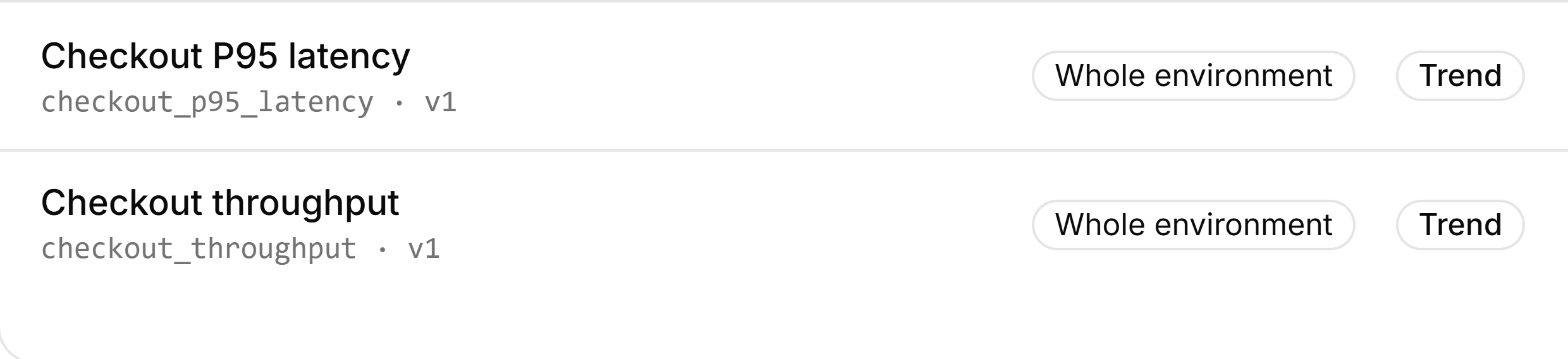

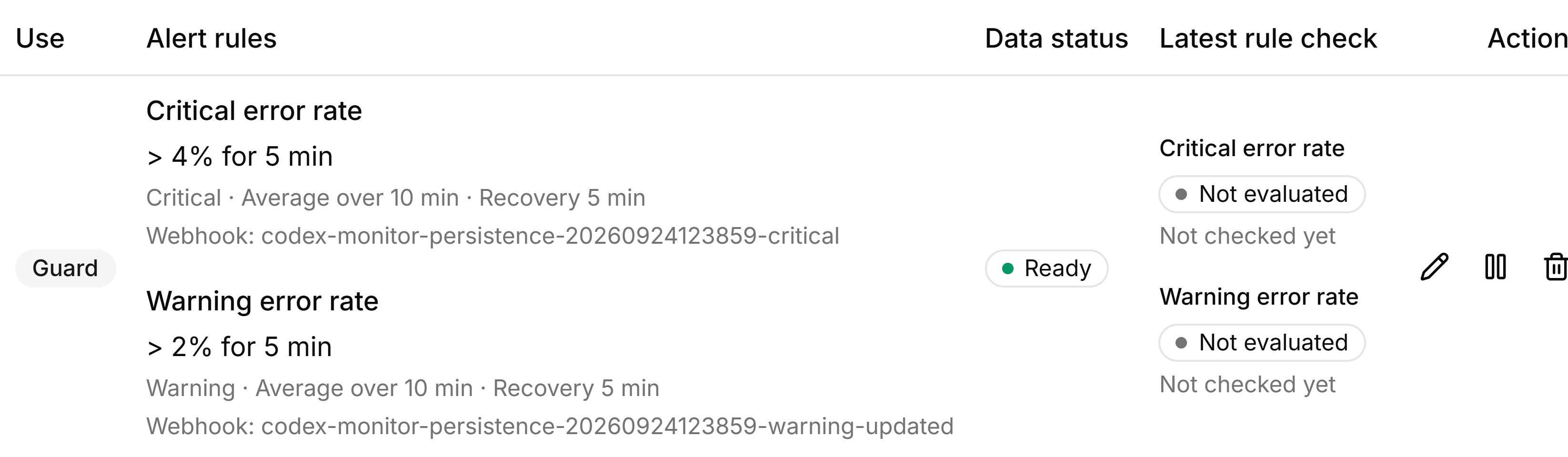

    Bind a guard and the trends that explain it.

    The Checkout reliability monitor pairs an error-rate guard with P95 latency and throughput trends. The example guard has warning and critical thresholds with sustained windows. The screenshot’s latest rule checks remain Not evaluated.

    Warning / critical
    >2% / >4% for 5 minutes
    Guard window
    Average over 10 minutes
    Trend context
    P95 latency · throughput

    Each guard has an explicit condition and alert route. Supporting trends provide context for the investigation.

    Inside FeatBitDesign preview
    Swipe to inspect
    Design preview → Guard rules and latest check
    Inside FeatBitDesign preview
    Swipe to inspect
    Design preview → Supporting trend metrics

    Error-rate guard

    Latency + throughput

    Separate a guard condition from explanatory trends

  3. 03Step 03 / 04

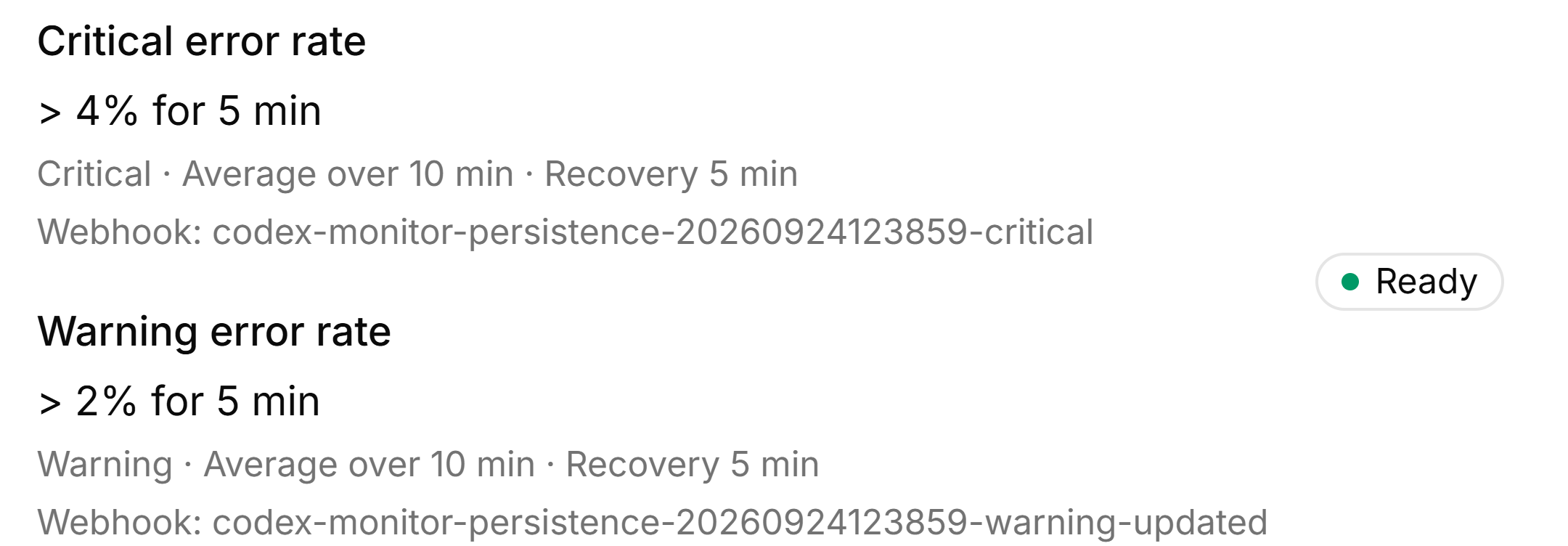

    Send a webhook alert when the guard breaches.

    In the planned flow, the monitor sends an alert to the matching rule’s configured webhook once its threshold and sustained duration are met. Warning and critical rules can use their own webhooks. The receiving service routes the alert to the release owner or the team’s response workflow.

    Warning condition
    >2% for 5 minutes
    Critical condition
    >4% for 5 minutes
    Alert destination
    Webhook configured per guard rule

    A sustained threshold breach becomes an actionable notification, connecting the health signal to the team’s response.

    Inside FeatBitDesign preview
    Swipe to inspect
    Design preview → Threshold conditions and per-rule webhooks

    Sustained threshold breach

    Webhook alert

    Monitor → configured webhook → team response

  4. 04Step 04 / 04

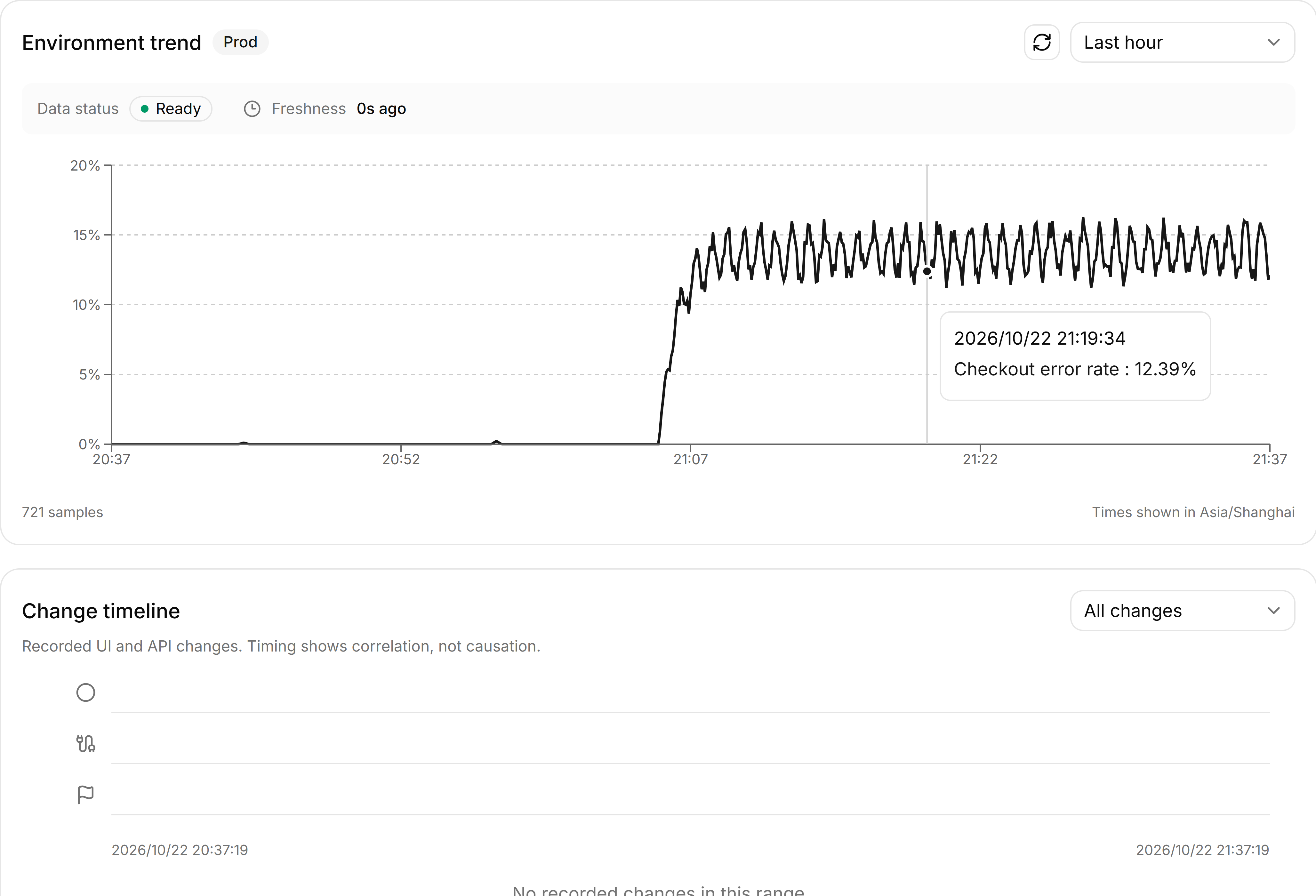

    Read the trend alongside the change timeline.

    Open the metric to inspect its environment trend, freshness, and time window. The design places recorded changes beside the same period. This fixture has no recorded changes in range, so the rising error rate cannot be attributed to a particular release from this view alone.

    View
    Prod · Last hour
    Context in this preview
    Whole environment
    Before acting
    Confirm scope and investigate cause

    Use the evidence to hold, investigate, or recover. A matching timestamp alone does not establish causation.

    Inside FeatBitDesign preview
    Swipe to inspect
    Design preview → Environment trend and change timeline

    Trend + change context

    Investigate before expanding

    Whole-environment data does not prove a variant caused the change

The next decision

Confirm the scope before choosing a release action.

When a webhook alert arrives, check data freshness, environment and query context, then investigate the application and recent changes. The preview shows whole-environment signals; it does not establish that one flag variation caused a regression.

Build your own release in FeatBit

Release Health is a design preview

This preview uses isolated checkout demo data. Automatic rule checks, alert delivery, and background synchronization are not active in the shown build. A configured guard is not an active automated recovery loop.
